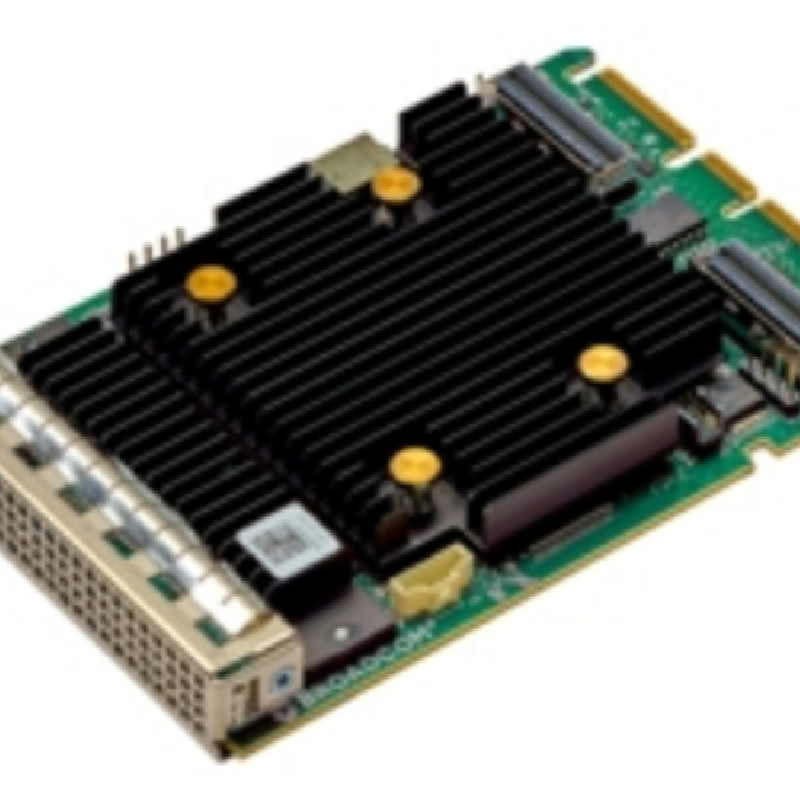

Broadcom  9562-16i  05-50137-00  Gen 4.0 Tri-Mode MegaRAID OCP 陣列卡TEL:13910098771

16 端口 OCP 3.0 SFF 三模 9562-16i NVMe/SAS/SATA RAID 適配器在將存儲集成到服務器時提供了更大的靈活性。

OCP RAID 適配器支持在單個驅動器托架中運行 NVMe、SAS 或 SATA 設備。通過使用 OCP 插槽進行存儲，用戶可以騰出標準 PCIe 適配器插槽用于其他用途。

• 連接多達 1024 個 SAS/SATA 設備或 32 個 NVMe 設備

• 為高端服務器和應用程序提供的連接和性能

• 通過 PCIe 4.0 連接的帶寬支持關鍵應用程序

• 通用托架管理 （UBM） 就緒

• 符合 SFF-9402 標準的連接器引腳排列

  pecification	Value
  Lifecycle	Active
  Distributor Inventory	No
  Brackets	Internal Lock
  Cache Memory	8GB
  Cache Protection	CacheVault CVPM05
  Connectors	2x8 SFF-8654 (Vertical)
  Data Transfer Rates	12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
  Devices Supported	SAS/SATA: 1024, NVMe: 32
  Generation	12 Gb/s
  Host Bus Type	x8 lane PCI Express 4.0
  I/O Processor / SAS Controller	SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
  Internal Ports	16
  Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
  MTBF	>3,000,000 hours at 40° C
  OCP Thermal Tier	Tier 5
  Operating Temperature°C	0°C to 55°C
  OS	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
  Physical Dimensions	115.00 (+/-0.13) mm x 76.00 (+/-0.13) mm
  RAID Levels	0, 1, 10, 5, 50, 6, 60
  Regulatory Certifications	Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
  Typical Power	13W
